Features:

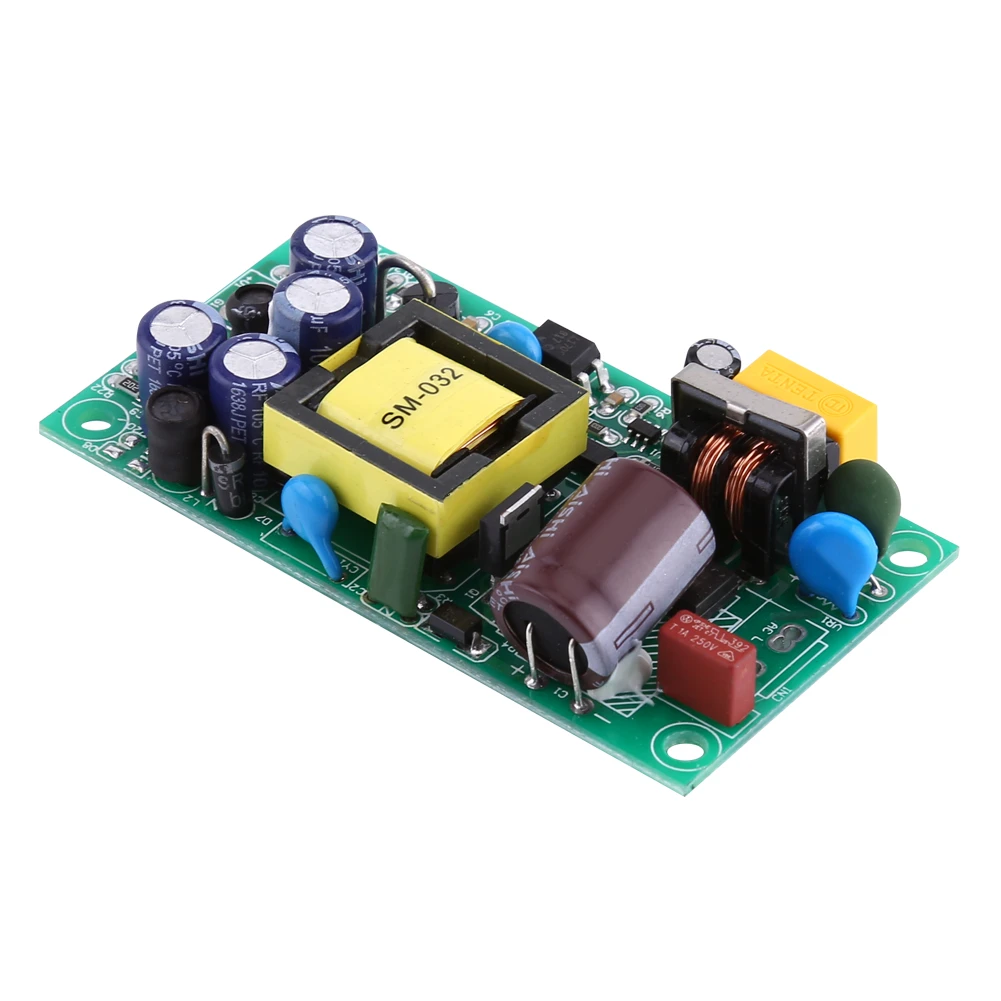

This is an electronic power supply module that incorporates a switching regulator to convert electrical power efficiently.

Like many other power supplies, it transfers power from AC85V~264V or DC110 ~370Vsource to DC24V, 600mA or DC5V, 500mA.

Switching regulators are used as replacements for linear regulators when higher efficiency, smaller size or lighter weight are required.
It supports over temperature protection, over current protection and short circuit protection.
High conversion efficiency and low output ripple noise, isolated power supply module has high output accuracy.

Specifications:
Type: Isolated power supply module

Input Voltage: AC 85V to 264V,
DC 110V to 370V

Input Current: 1mA(115VAC), 0.5mA(230VAC)
Output: DC24V/600mA, 5V/500mA

Output VoltageMinimum CurrentMaximum CurrentPeak CurrentOutput Voltage RangeRipple
+24V0A600mA700mA11.80V~12.5V150mV
+5V0A500mA600mA4.90V~5.1V80mV
Input Surge Current: 20A(230VAC)
Max. Output Power: 17W Efficiency: 78%
Over Current Protection: Yes
Over Temperature Protection: Yes
Short Circuit Protection: Yes
Size: 76 x 41 x 22mm / 2.99 x 1.61 x 0.86"
Mounting Hole Diameter: 3.2mm / 0.12"

Package Includes:
1 x Power Supply Module
