Features:
100% brand new and high quality

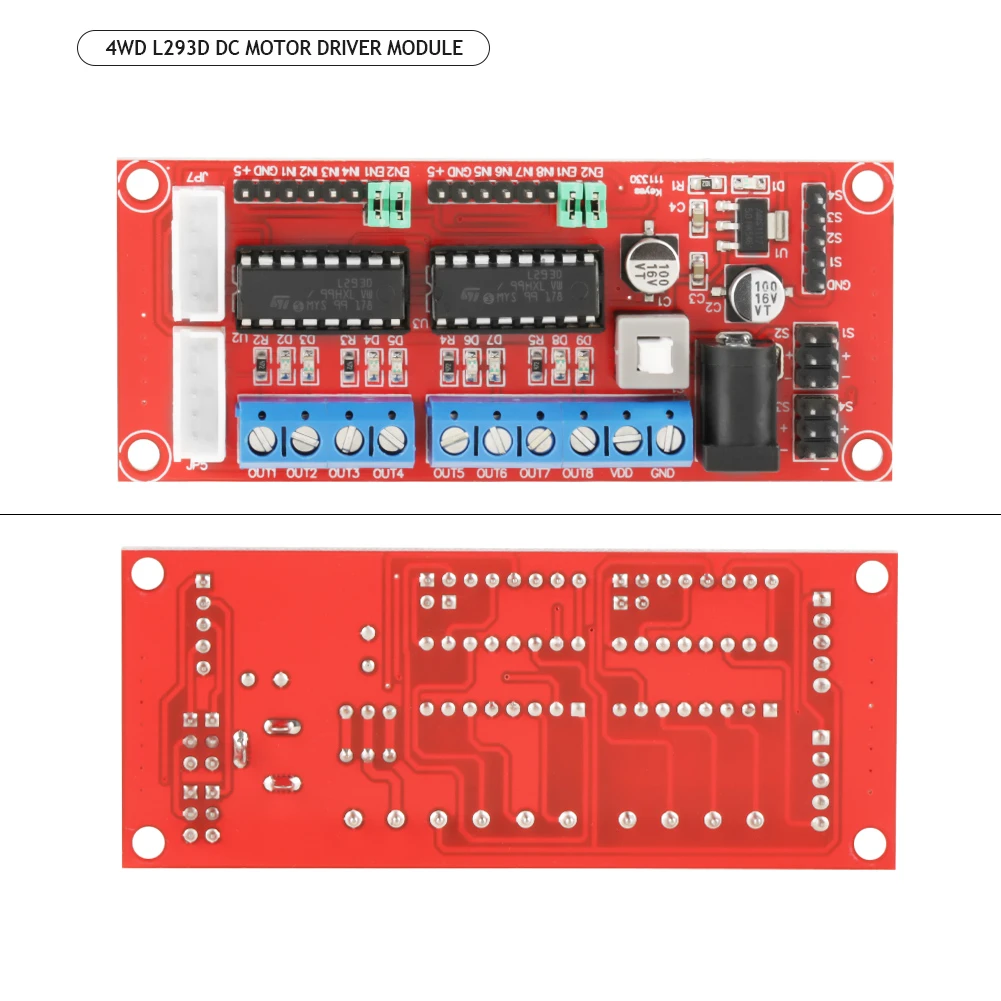

This product is made of high quality L293D double H bridge DC motor drive chip
Low heat, outstanding anti-interference performance.
Large capacity filter capacitance, after-flow protective diode, more stable and reliable.
The logical part of the work current is 0 - 36mA, Drive part of the operating current Io 1A.

Specifications:
Driven part input voltage Vs: +5 ~ 16V
Drive part operating current Io: 2A
Logical part working current is: 0 - 36mA
Control signal input level(IN1 IN2 IN3 IN4 IN5 IN6 IN7 IN8)
Low level: -0.3V ≤ Vin ≤ 1.5V.
High level: 2.3V ≤ Vin ≤ Vss.
Maximum power dissipation: 20W (T=75℃)
Operating temperature: -25 ℃ ~ +130 ℃.
Drive Type: Dual H-bridge driver
Other expansion: control direction indicator light, logic part of the board electrical interface
Size: 90mm x 37mm / 3.54 x 1.46in
Weight: 37g

Package includes:

1 x L293D Drive module
1 set x accessories
