Note: Do not mount the unit in direct sunlight or near heat sources.

Overview:

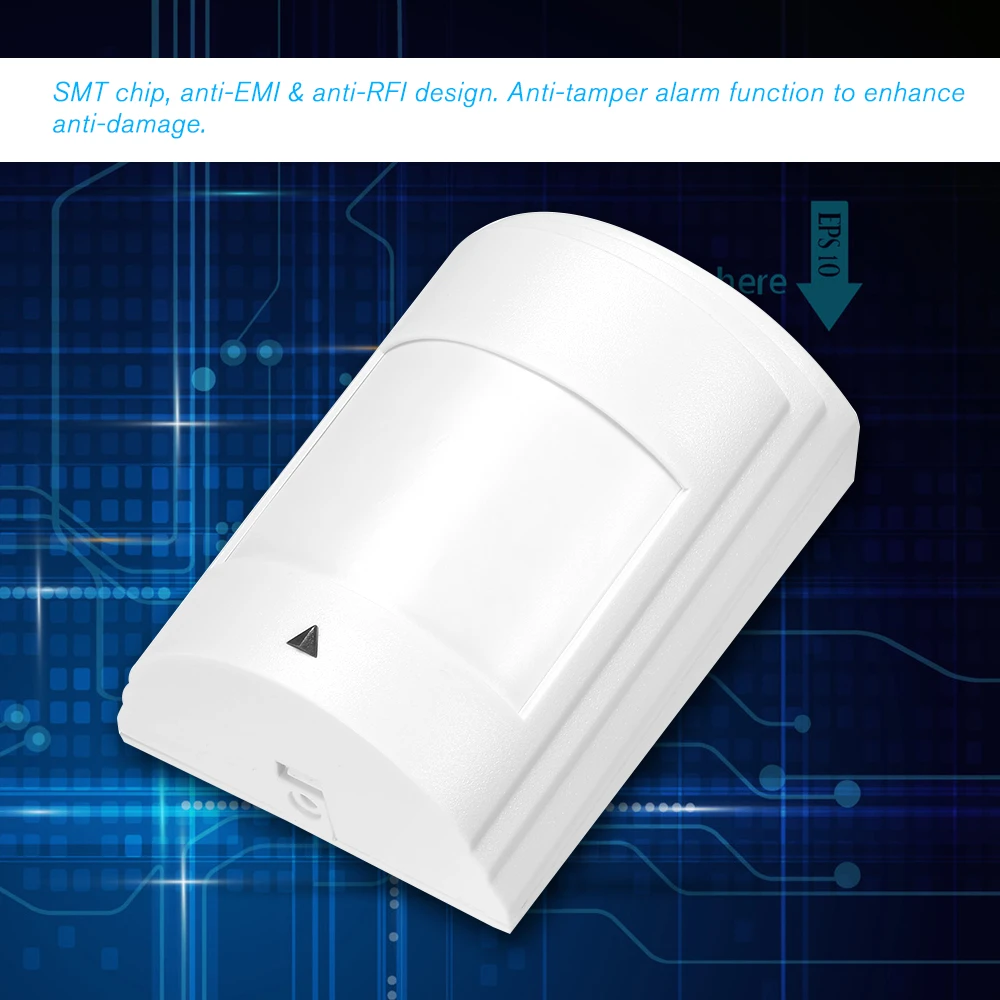

This product is a wide angle passive infrared detector, exquisite design, easy installation. Fit for the locations of the balcony, window, door, corridors, etc. Imported high-end infrared sensor, SMT chip technology, anti-EMI & anti-RFI design, temperature compensation, pulse count, LED switch, etc. selectable functions, can be integrated with wired alarm host.

Specifications:
Working Voltage: 9V-16V
Standby Current: 18mA
Alarm Current: 20mA
Wide Detector Angle: 110° (10.6mX10.6m)
Detection Distance: 12m (25℃)
Detection Speed: 0.2-7m/s
Sensitivity: Level 2 adjustable
Installation Way: Wall Hanging
Installation Height: 1.1m-3.1m Adjustable
Alarm output: NC
LED indicator light: ON/OFF optional
Operating temperature: -10°C to 50°C
Item Size: Approx. 9.4 * 6.8 * 5.5cm(L*W*H)
Item Weight: Approx. 76g / 2.7oz


Package Information:
Package Size: Approach. 9.8 * 6.8 * 5.6cm / 3.8 * 2.7 * 2.2in
Package Weight: Approach. 89g / 3.1oz


Package List:
1 * Wired PIR Motion Sensor
1 * User Manual
