4G HAT FOR RASPBERRY PI

Enabling LTE Cat-4 4G / 3G / 2G Communication & GNSS Positioning

Based on SIM7600G-H, Global Band

Features At A Glance

• Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
• Supports dial-up, telephone call, SMS, TCP, UDP, DTMF, HTTP, FTP, etc.
• Supports GPS, BeiDou, Glonass, LBS base station positioning
• Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
• Onboard CP2102 USB to UART converter, for serial debugging
• Breakout UART control pins, to connect with host boards like Arduino/STM32
• SIM card slot, supports 1.8V/3V SIM card
• TF card slot for storing data like files, messages, etc.
• Onboard audio jack and audio decoder for making telephone call
• 2x LED indicators, easy to monitor the operating status
• Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via jumper
• Baudrate: 300bps ~ 4Mbps (default: 115200bps)
• Autobauding baudrate: 9600bps ~ 115200bps
• Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set)
• Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT
• Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

SpecificationsFREQUENCY BANDLTE Cat-4LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66LTE-TDD: B34/B38/B39/B40/B413GUMTS/HSDPA/HSPA+: B1/B2/B4/B5/B6/B8/B192GGSM/GPRS/EDGE: 850/900/1800/1900 MHzGNSSSatellite systemsGPS/Beidou/GLONASSReceiver type16-channelC/A CodeSensitivity-159 dBm (GPS) / -158 dBm (GLONASS) / TBD (BeiDou)Cold starts: -148 dBmTime-To-First-Fix (open air)Cold starts: <35sHot starts: <1sSMS AND AUDIOSMSSupported types: MT, MO, CB, Text, PDUStorage: USIM card and ME (default)Audio featureSupports echo cancellationSupports noise reductionOTHERPower supply5VOperating voltage5V / 3.3V (configured via jumper)Operating temperature-30°C ~ 80°CStorage temperature-45°C ~ 90°CDimensions56.21mm × 65.15mmStandard Raspberry Pi 40PIN GPIO

Compatible With Raspberry Pi Series Boards, Jetson Nano

Global Band 4G / 3G / 2G SupportDial-Up On Windows/Linux

LTE Cat-4: Up To 50Mbps (Uplink) / Up To 150Mbps (Downlink) *3G (HSPA+): Up To 5.76Mbps (Uplink) / Up To 42Mbps (Downlink) *

* stands for idealized data rate, the actual data rate depends on factors like network coverage, traffic congestion, base station condition, etc.

Cloud Communication

Supports Communication Protocols Including TCP/UDP/FTP/FTPS/HTTP/HTTPS

GNSS Positioning

Supports GPS, BeiDou, Glonass, LBS Base Station Positioning

Telephoto Call & SMS Support

Making Telephoto Call Or Sending SMS By AT Commands, With Onboard Audio Jack

What's On Board

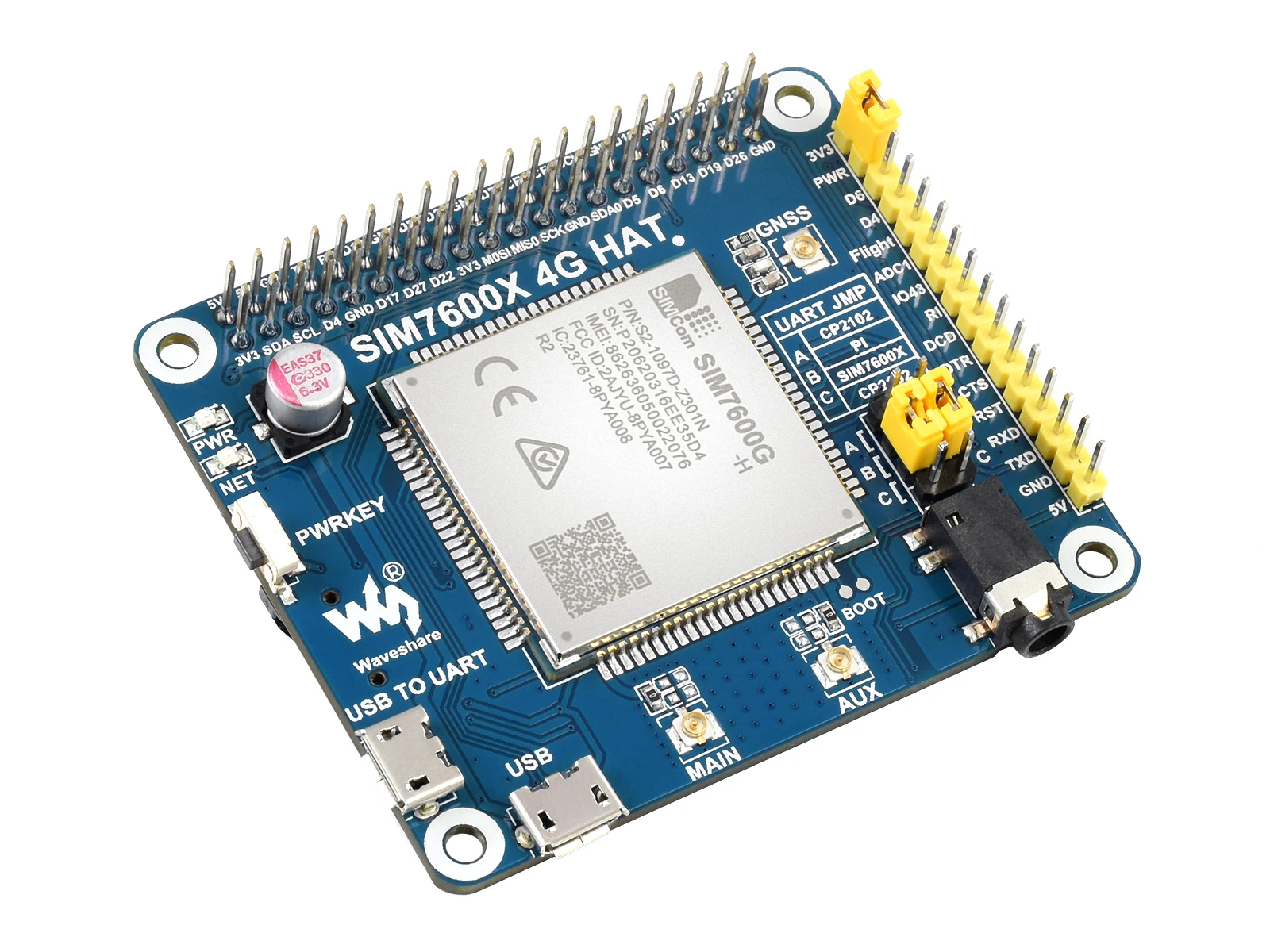

1. SIM7600G-H
2. CP2102 USB to UART converter
3. NAU8810 audio decoder
4. TXS0108EPWR voltage translatortranslates 3.3V/5V into 1.8V
5. MP2128DT power chip
6. MP1482 power chip
7. Raspberry Pi GPIO header
8. SIM7600 control interfacefor connecting with host boards like Arduino/STM32
9. SIM card slotsupports 1.8V/3V SIM card
10. TF card slotallows data storage like files, messages, etc.
11. 3.5mm earphone/mic jack
12. USB interfacefor testing AT Commands, getting GPS positioning data, etc.
13. USB to UART interfacefor serial debugging, or login to Raspberry Pi

14. MAIN antenna connector
15. AUX antenna connector
16. GNSS antenna connector
17. Power switch
18. Network status indicator
19. Power indicator
20. Operating voltage selection jumperconfigured via 0Ω resistor jumperVCCIO - 3.3V: set operating voltage as 3.3VVCCIO - 5V: set operating voltage as 5V
21. UART selection jumperA: access Raspberry Pi via USB to UARTB: control the SIM7600 by Raspberry PiC: control the SIM7600 via USB to UART
22. PWR configuration jumperPWR - 3V3: auto startup on power-up (default)PWR - D6: startup/shutdown by the Raspberry Pi D6 pinFlight mode configuration jumperNC by default, no flight mode control pinFlight - D4: flight mode is controlled by the Raspberry Pi D4 pin
23. USB connector solder pads
24. BOOT forced programming solder pads

Pinout DefinitionOutline DimensionsResources & ServicesWIKI: SIM7600G-H_4G_HAT
