Description:

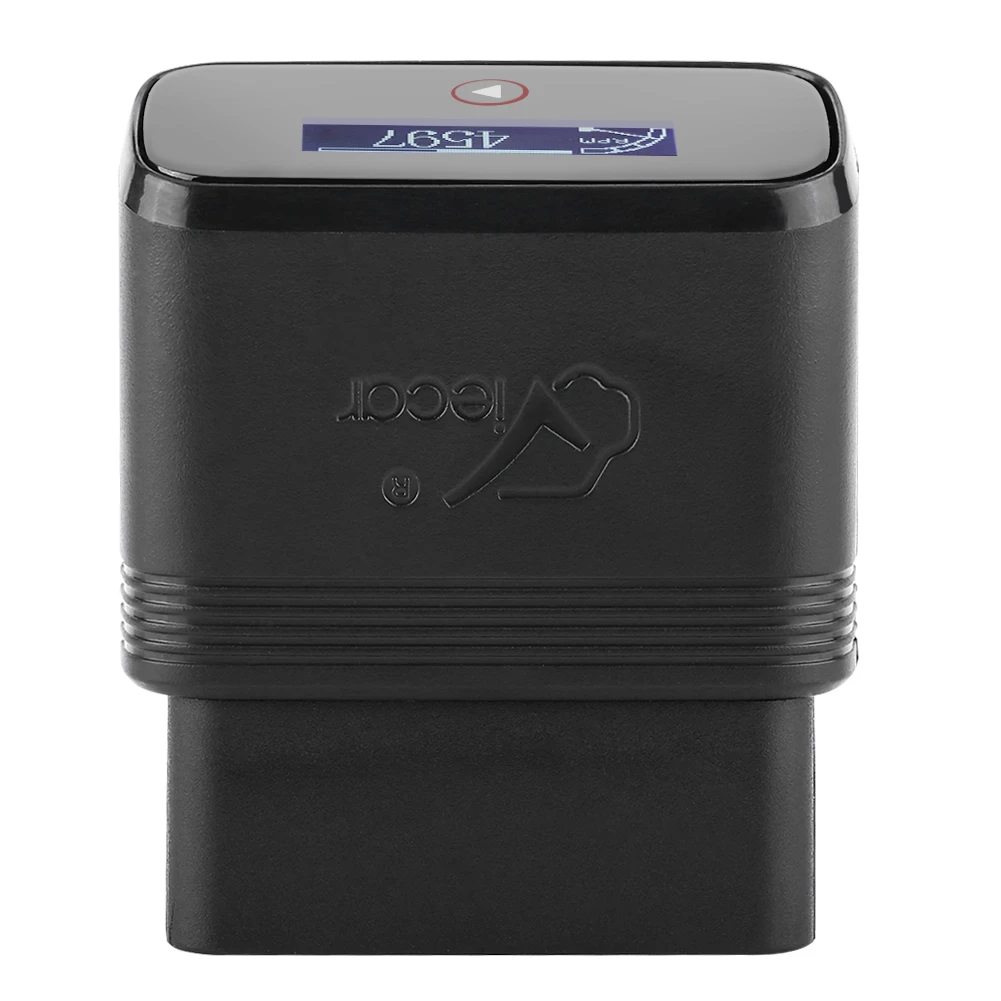

Viecar VC101 Car Diagnostic Scanner using Bluetooth 4.0 dual-mode design, perfectly support for IOS and Android devices and high-speed data transmission. Via connecting with in-vehicle ECU computer to achieve interface 360 degree experience of whole car, early find vehicle Sub-health, also ensures vehicle in warranty early find fault so that promptly take appropriate measures, protect the interests of the owners. By analyzing and assessing for this time and historical and other multi-dimensional fuel consumption, help car owners saving fuel even money. Also recording driving behavior, analyzing condition data, recommending for improvement, and promptly correcting bad driving habits, in order to drivers can be more humane to use their own car.

Features:
High quality car diagnostic scanner tool with touch screen, support OBD2 protocols.
Read error diagnostic codes - General and manufacturers special use, and display their meaning(Database has over 3000 generic code definitions).
Clear the error code and shut off the MIL ( "Check Engine" light)
Support for Android/IOS/Windows devices to use this scan tool to test.
Display current sensor data, including: Engine Revolutions Per Minute(RPM), Calculated Load Value, Coolant Temperature, Fuel System Status, Speed, Short-Term Fuel Situation, Long-Term Fuel Situation, Intake Manifold Pressure, Injection Advance Time, Intake Air Temperature, Air Flow Rate, Absolute Throttle Position, Oxygen-sensing Voltage Associated with the Short-Term Fuel State, The Fuel Pressure, Fuel Consumption Monitoring and many other data.

Specifications:
Material: Plastic
Color: Black
Brand: Viecar
Model: VC101
Communication Method: Bluetooth Dual-Mode (2.0/4.0)
Software Platform: Support for Android/IOS/Windows
Working Voltage: 9V-16V
Working Current: 45mA
Working Temperature: -40℃ - 85℃
Working Humidity:
Supported Vehicle: OBDII Protocol Vehicle
Package Weight: approx. 40g
Supports OBDII Protocols:
for SAE J1850 PWM (41.6 Kbaud)
for SAE J1850 VPW (10.4 Kbaud)
ISO 9141-2 (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (fast init, 10.4 Kbaud)
ISO15765-4 CAN (11bit ID, 500 Kbaud)
ISO15765-4 CAN (29bit ID, 500 Kbaud)
ISO15765-4 CAN (11bit ID, 250 Kbaud)
ISO15765-4 CAN (29bit ID, 250 Kbaud)
Compatible Software:
for Windows: ScanMaster-ELM, ScanTool.net, PCMSCAN
for Android: Torque_Pro, DashCommand, EOBD
for IOS: DashCommand, EOBD, Viecar
for Symbian: OBDScope

Package Included:
1 x OBD2 Diagnostic Scanner
1 x User Manual
