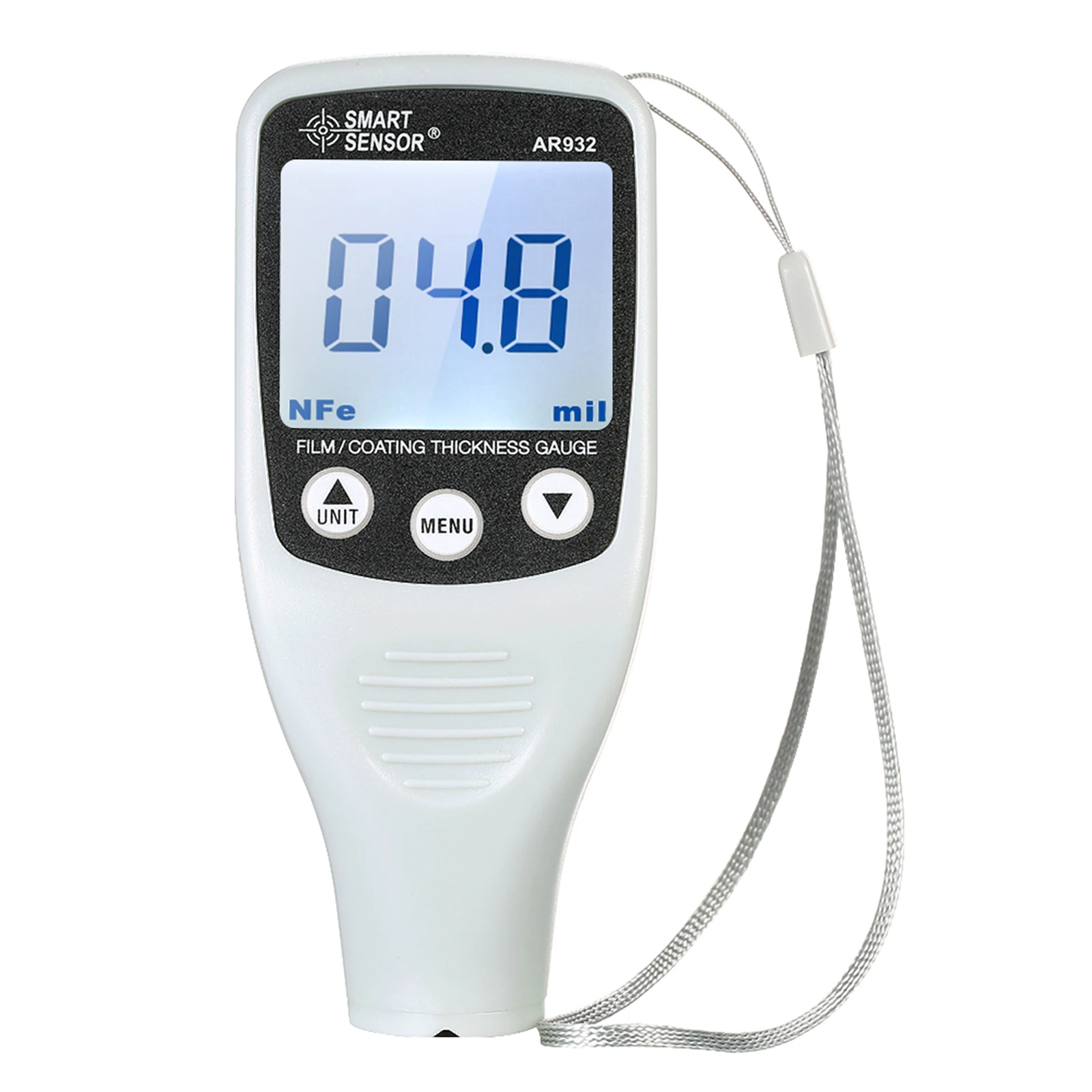

Name: Digital Paint Thickness Gauge - SMART SENSOR Handheld Tester with Auto Function, Fe/NF Probe, 0-1700um
Brand: morelian
SKU: SHTDE17373PY
Price: 223.2 AED
Availability: InStock

Highlights

Quickly measure the thickness of paint coating with wider measuring range: 0-1700um/0～67.8mil and 3 simple one-hand operation buttons.
Automatic detecting the metal properties and display on the LCD, symbol Fe for magnetic substrate and NFe for non-magnetic substrate.
Automatically power on and measure with μm/mil units switchable and V-Groove on probe for small cylindrical parts.
Convenient auto calibration modes: automatic calibration according to 5 different calibration plates of 0, 50, 100, 250, 500.
Automatic correction function to prevent misuse calibration. With Max, Min, Average value display. 180 degree screen flip for easy data reading.

Key Attributes

SKU ID	SHTDE17373PY
Dimensions (Length x Width x Height)	22.5cm x 18.5cm x 4.8cm
weight	399.6g
Stock Location	China
Country of Origin	China
Brand	Morelian

Shipment Information

Weight per item	399.6 g
Dimensions per item (LWH)	22.5 x 18.5 x 4.8 cm
Carton weight	399.6 g
Carton dimensions (LWH)	22.5 x 18.5 x 4.8 cm
Pieces per carton	1
Stock location	China

This coating thickness gauge is used to measure the thickness of the plated and coated sheet on metal, e.g. paint/enamel/ chrome on steel, paint and anodizing coating on aluminum/copper, with the function of backlight large LCD display and detecting the metal properties automatically. This Coating Thickness Tester is perfect for manufacturing company, metal machinery industry, chemical industry and commodity inspection especially automobile trading. Specifications: Material: ABS Plastic Sensor Probe Type: Fe / NFe Working Principle: Magnetic Induction(Fe) / Eddy Current(NFe) Range: 0～1700um, 0～67.8mil Units: μm, mil Accuracy: ±(1.8%um±2um)(0-499um), ±(2.2%um±2um)(499-1700um) Resolution: 0.1um(0-99um), 1um(100-1700um), 0.1mil Minimum Curvature Radius: Convex 5mm, Concave 30mm Minimum Measuring Area: 25x25mm Minimum Thickness of Substrate: Magnetic 0.2mm, Non-magnetic 0.05mm Data Storage: 20 Groups Function: LCD Backlight Display, Low Battery Indicator, Zero Calibration, Basic Calibration, Auto Power Off, Max/Min/Average Value, Data Hold, Unit Selection Auto Calibration: According to 5 different calibration plates of 0, 50, 100, 250, 500 Operation Temperature: 0～50℃ Power Supply: 2 * 1.5V AAA Batteries(NOT Included) Storage Box Size: 210 * 175 * 40mm / 8.3 * 6.9 * 1.6in Item Size: 50 * 30 * 120mm / 2.0 * 1.2 * 4.7in Item Weight: 74g / 2.6oz Package Weight: 431g / 15.2oz Package Size: 22.5 * 18.5 * 4.8cm / 8.9 * 7.3 * 1.9in Packing List: 1 * Film Coating Thickness Gauge 1 * Iron Substrate 1 * Aluminum Substrate 1 * Storage Box 4 * Thickness Calibration Foil 1 * User Manual

Overview

Product Description

Digital Paint Thickness Gauge - SMART SENSOR Handheld Tester with Auto Function, Fe/NF Probe, 0-1700um
