Shineman Fanless Metal Mini PC Embedded Industrial Edge Computer 16+512GB 4*LAN 6*COM Rugged Factor PC Intel Quad Core i5-8260U 3.9GHz Turbo
Spotlight Features
●Soldered down 10th/8th Generation Intel Celeron/Pentium/Core i3/i5/i7 Processor
●Integrated Intel UHD Graphics
●With HDMI，LVDS，Supports Dual Display
●Dual Channels DDR4，Max.64G/2666MHz
●1*mPCIE，Supports WiFi/3G/4G module
●1*M.2 Key M，Supports 2242/2280 SSD
●4*Gigabit LAN，10/100/1000M
●Realtek 5.1 Channels HDA Codec
●6*COM，COM1/COM2 supports RS232/
RS422/RS485
●1*16 bit programmable GPIO
●9V-36V Power supply
Specification
Processor
Intel Whiskey Lake-U/Coffee Lake-U/Comet Lake-U
Graphics
Intel UHD Graphics
Display
1*HDMI1.4, Max Reslution 4096X2304@24Hz
Memory
2*DDR4 SO-DIMM，Max.64GB DDR4/2666MT/s
Ethernet
4*Intel i211 Gbe， Supports WOL、PXE Boot、POE
AUDIO
1*Realtek ALC662，5.1 CHs HDA Codec，Whit MIC_IN/HP_OUT
Storage
1*SATA3.0
1*M.2 KEY M，Supports M.2 2242/2280 SATA/NVME SSD
Expansion
1*mPCIE，Support WiFi/3G/4G Module
1*SIM Card socket

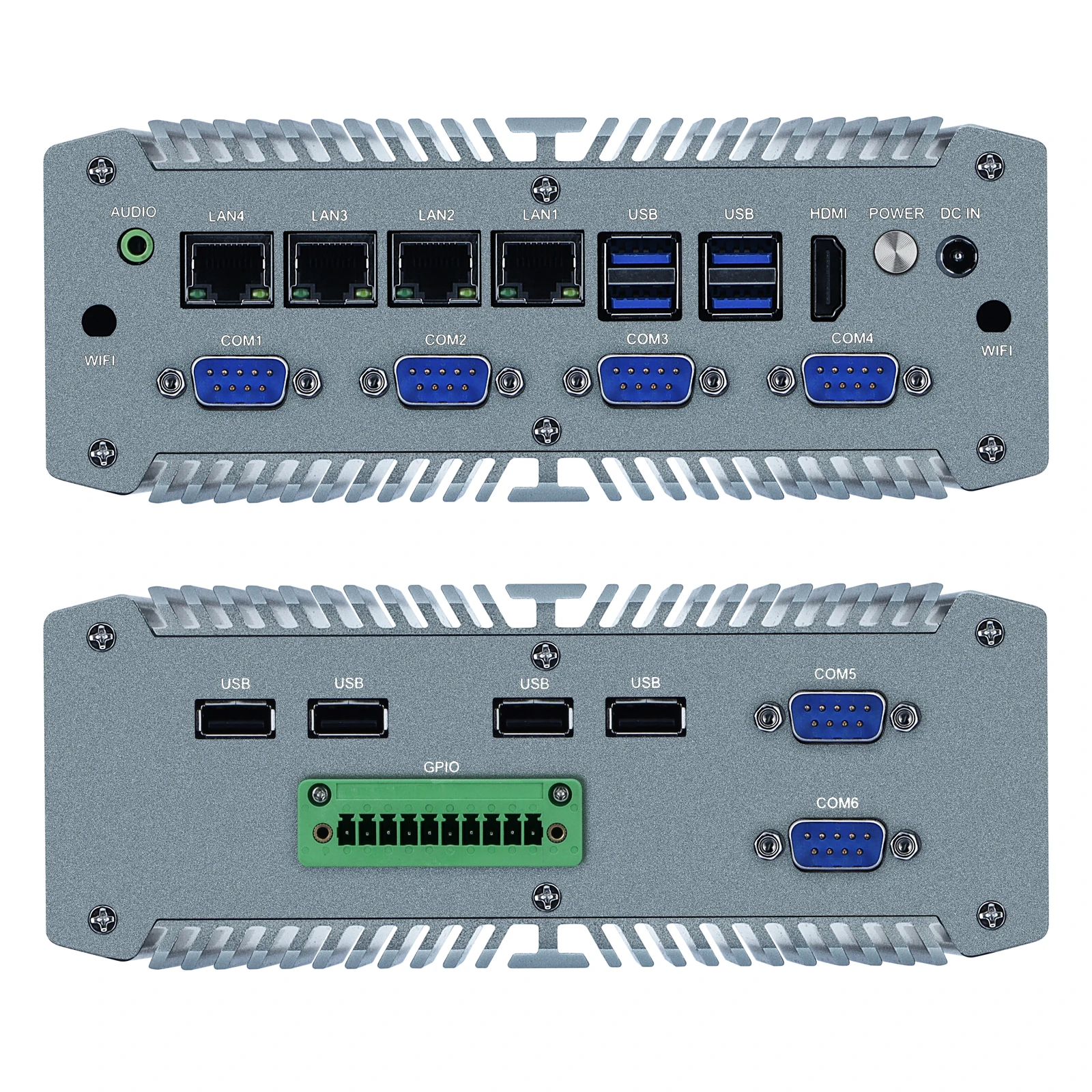

Rear Panel I/O
1*DC_IN
1*PWR_BTN
1*HDMI
4*RJ45
4*USB3.0
1*AUDIO
4*COM
Front Panel I/O
1*GPIO
2*COM
4*USB2.0
BIOS
AMI UEFI BIOS
Power Supply
DC 9-36V Range
OS
windows10/11/Linux
Heat Sink
Fanless
OTR
-15℃～70℃
STR
-25℃～85℃
Humidity
5%-95% Relative Humidity,Non-condensing
Dimension
185*141*70mm
Weight
2Kg
