Description:

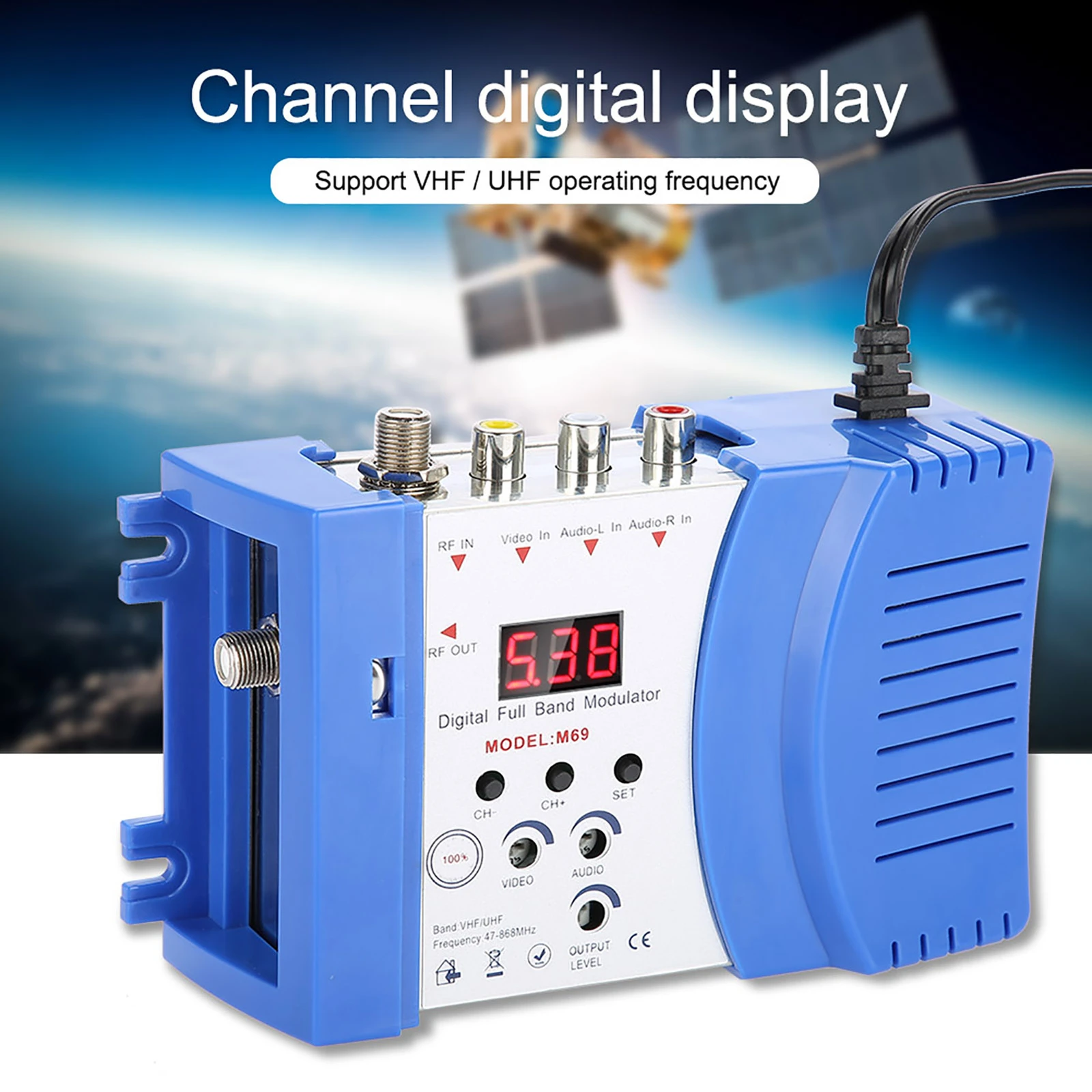

This RF Modulator allows you to convert the AV inputs into RF output signals, and when the AV device system is turned on, it will switch to Home TV automatically. This modulator privides a clearer picture and is free from outside signal interference. It is suitable for satellite receivers, video cameras, video game consoles, CCD cameras, VCR, DVD and more.

Features:
1. Support VHF / UHF operating frequency.
2. Channel digital display.
3. Ergonomic design, easy to install, easy to operate.
4. Adjustable output level and adjustable audio/video output level.
5. Channel digital display and selectable output channel.
6. Compatible with all local CATV system.

Specifications:
Color: Blue
Plug Type: US(110V), EU(230V) (Optional)
Material: Plastic
Standard: pal / NTSC
Frequency Range: 47-868MHz
Output Impedance: 75ohm
Output Level: 80-95dBuV
Input Level: 0.77Vp-p for 80%+/-10% modulation
Sound System: M=4.5MHz, B/G=5.5MHz, I=6.0MHz, D/K=6.5MHz
Insertion Loss:
Operating Temperature: 10℃ ~+60℃
Size: Approx. 16 * 9.5 * 5cm / 6.3 * 3.7 * 2.0in
Weight: Approx. 416g

Package List:
1 * Modulator
1 * User Manual
