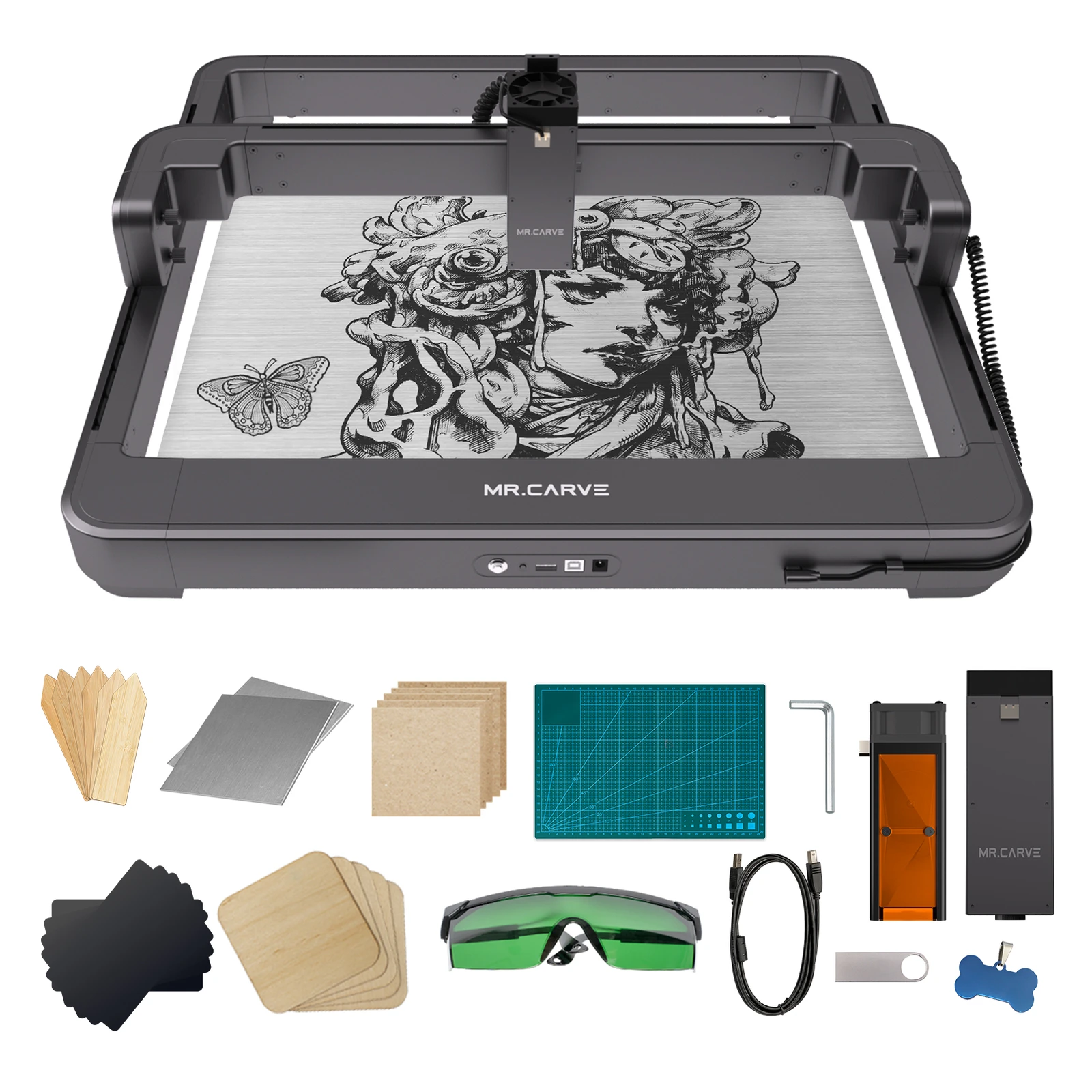

Name: MR.CARVE M3 Laser Engraver Engraving Marker Infrared Laser Module and 10W Blue Light Laser Module Support Offline Work APP Control Compatible with Windows/Android/IOS/MAC for Paper Bamboo Glass EU Plug
Brand: morelian
SKU: SHTDOS6672EUPY
Price: 3024 AED
Availability: InStock

Highlights

Easy to Install: The module adopts the plug-in positioning and screw fixing method, which is convenient and quick to assemble, simple and accurate.
Fast and Accurate: Dual laser module design. 10W blue laser source with 455nm laser wavelength, engraving line speed up to 200mm/s. 0.06mm high accurate spot create more details. 2W infrared laser source with 1064nm laser wavelength, and more than 30
Wireless Operate: Adopt 32-bit high-speed main control MCU, fast and agile response; And dual-mode BT 5.0, stable connection, efficient transmission, and good system compatibility, great to design in MR CARVE APP and carve.
Strong Compatibility: Support various software to design such as self-developed MR CARVE, which can be used in computer and mobile phone as well; And compatible with Lightburn, GRBL. JPEG/BMP/GIF/PLT/PNG/DXF/JPG/XJ/HPGL all these file formats are sup
Wide Application: 10W blue laser engraver can engrave Wood, bamboo, Cardboard, plywood, non-transparent plastic, cloth, leather, stone, glass, ceramics, acrylic, etc. Infrared laser module can carve all metal materials such as gold, silver, platinum,

Key Attributes

SKU ID	SHTDOS6672EUPY
Dimensions (Length x Width x Height)	68cm x 27.5cm x 27cm
weight	10098g
Gender	N/A
Stock Location	China
Country of Origin	China
Brand	Morelian

Shipment Information

Weight per item	10098 g
Dimensions per item (LWH)	68 x 27.5 x 27 cm
Carton weight	10098 g
Carton dimensions (LWH)	68 x 27.5 x 27 cm
Pieces per carton	1
Stock location	China

Specification: Model: M3 Structure Material: High-strength Aviation Aluminum, ABS, PC Marking Area: 395x395mm, Motion Area:400x400mm Machine power: <60W Engraving accuracy: 0.01-0.5mm(Standard) /≤0.01mm Engraving line speed: ≤200mm/s Focal Distance: 5mm Laser Head: 5MM Fixed Focus Max.z-axis Material Height: 0.1-76mm Cooling: Passive'Forced Air Cooling Spot Shape / Spot size: Punctate / 0.06mm Semiconductor blue laser power supply: 10~20w(Standard) Semiconductor blue laser wavelength: 455nm Engraving depth / Cutting depth(455nm): 0.01-3mm / 0.01-8mm Continuous working life of laser(455nm): ＞10000H' 455nm blue light Engravable material: Wood, bamboo, Cardboard, plywood, non-transparent plastic, cloth, leather, stone, glass, ceramics, Acrylic Infrared end pumped laser power supply: 90~100W(Standard) Optical power of infrared end pumped laser: ＞2W(Standard) Wavelength of infrared end pumped laser: 1064nm Continuous working life of laser(1064nm): ＞30000H 1064nm Infrared laser Engravable material: Leather, opaque plastic, all paint materials, stone, paint glass, acrylic, circuit board, gold, silver, platinum, copper, aluminum, including all metal materials Supported File Formats: JPEG/BMP/GIF/PLT/PNG/DXF/JPG/XJ/HPGL Support System: WINDOWS/MAC/IOS/Android/GRBL/Lightburn Data Interface: USB Type-B (Square USB Interface Power Supply: 90V-240V 50-60HZ Product Size: 624x623x216mm Package Size: 68x27.5x27cm/26.7x10.8x10.6in Package Weight: 8526g/18.7lb Packing List: 1 x M3 Laser Marker Kit with Dual Laser Module

Overview

Product Description

MR.CARVE M3 Laser Engraver Engraving Marker Infrared Laser Module and 10W Blue Light Laser Module Support Offline Work APP Control Compatible with Windows/Android/IOS/MAC for Paper Bamboo Glass EU Plug
