Feature:

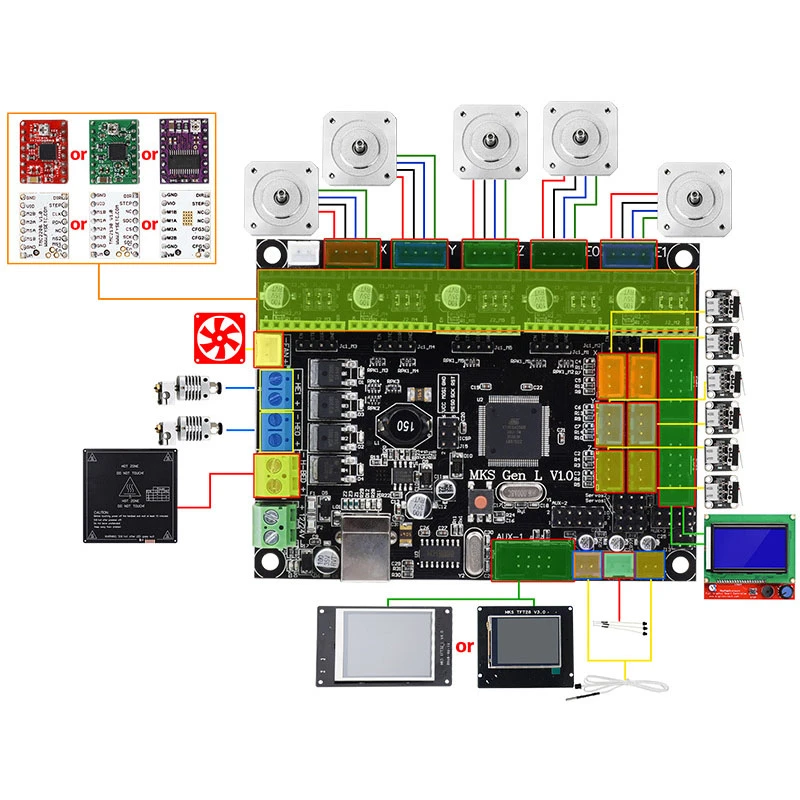

1. The 2560 and ramps1.4 are assembled on one board, which solves the problem that the Ramps1.4 combination interface is cumbersome and easy to fail.
2. Users can replace the motor drive by themselves, support 4988 drive and 8825 drive, TMC2100 drive
3. Reserve an external drive signal, which can be connected to a large drive to drive the 57 and 86 motors.
4. Using premium-quality MOSFET tube, the heat dissipation effect is better, and the long-term work is stable.
5. Using dedicated power chip, support 12V-24V power input, solve the problem of heat and power shortage of Ramps voltage conversion chip.
6. Stable and reliable filter circuit greatly reduces the possibility of interference, and it is possible to avoid the phenomenon of crashes and runaways during the printing process.
7. Adopt CH340 serial port chip to reduce the cost under the premise of ensuring stability and reliability, and solve the problem of 16U2 hard-to-install drive in the past.
8. Can accept 24V input, the same system power can reduce the hot bed current to 1/4, effectively solve the hot bed MOS tube heating problem.
Specification:
Color: 262K color
Display size: 3.5 inches
TouchScreen type: Resistive TouchScreen
Resolution: 480 x 320 px
9 languages can be switched: Chinese, English, Korean, Japanese, Russian, French, Spanish, Portuguese

Package List:
1 x MKS GEN L V1.0
1 x USB Data Cable
1 x 3.5 inch full color WIFI display
1 x Display cable
1 x WIFI cable
