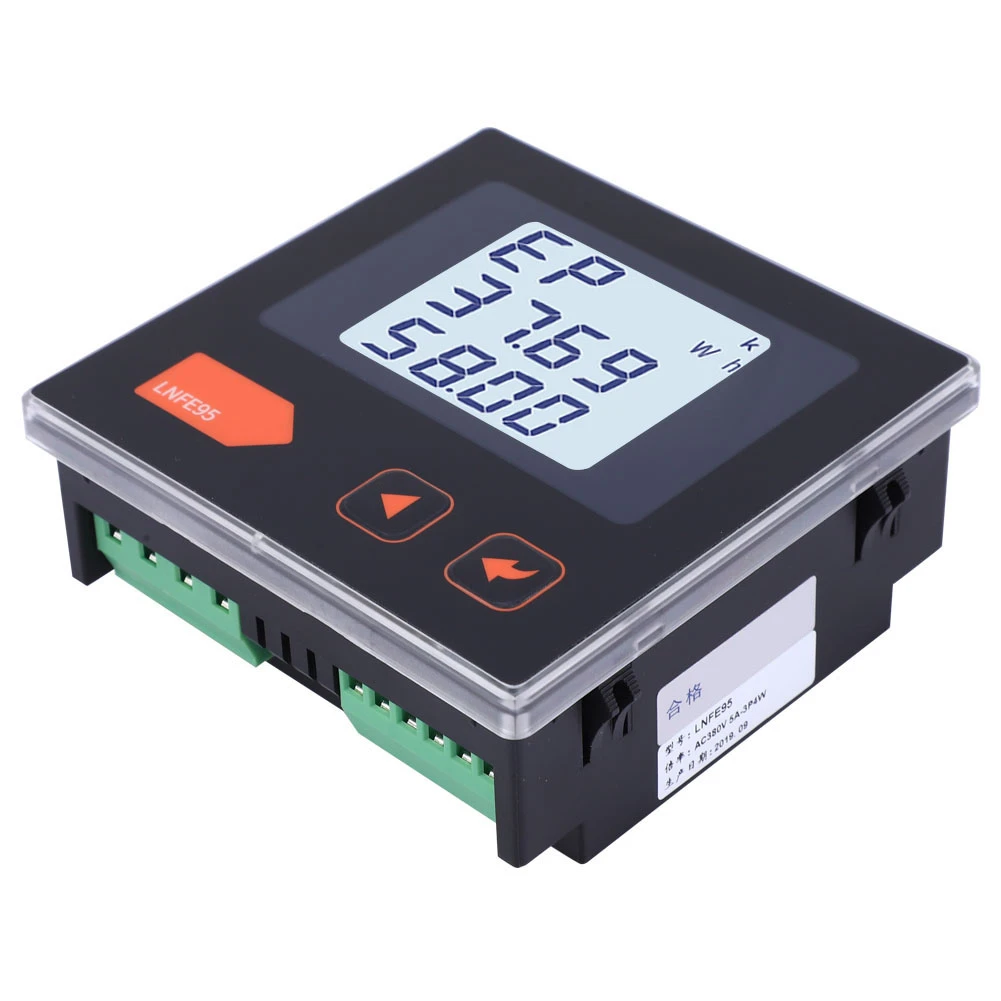

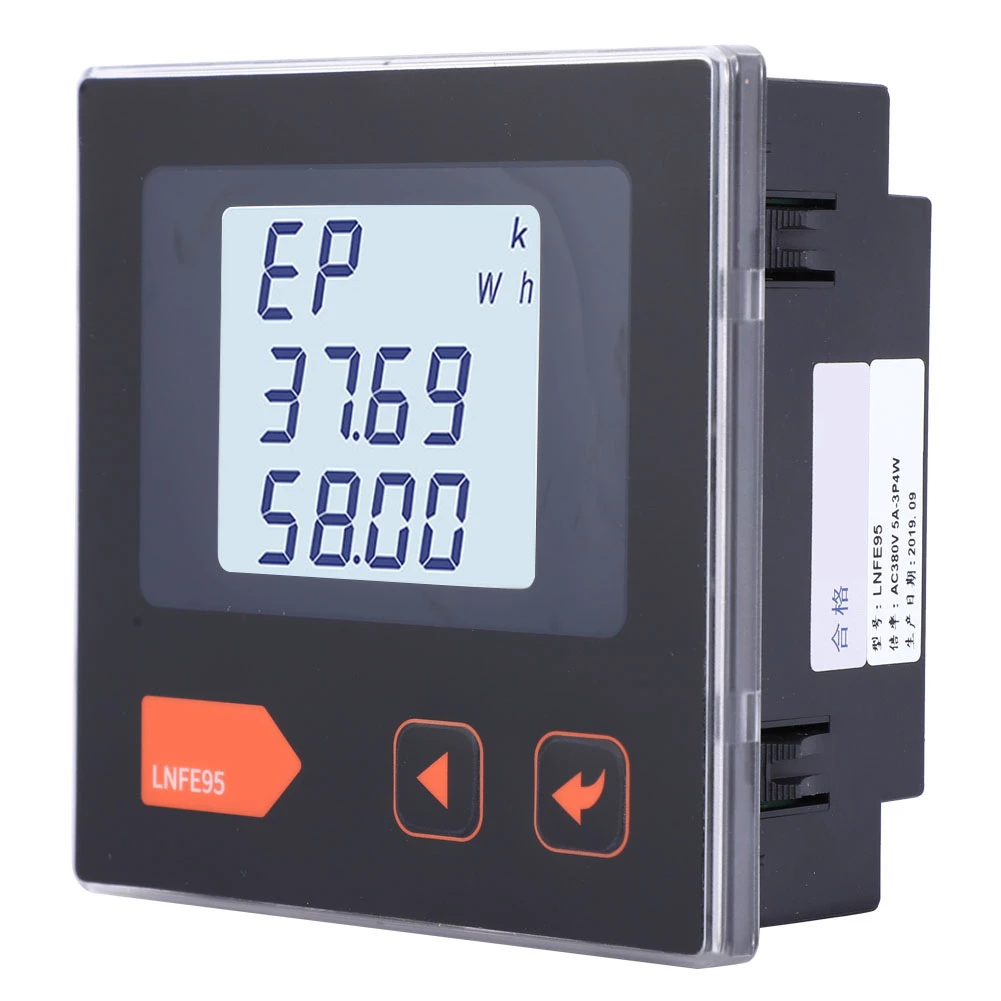

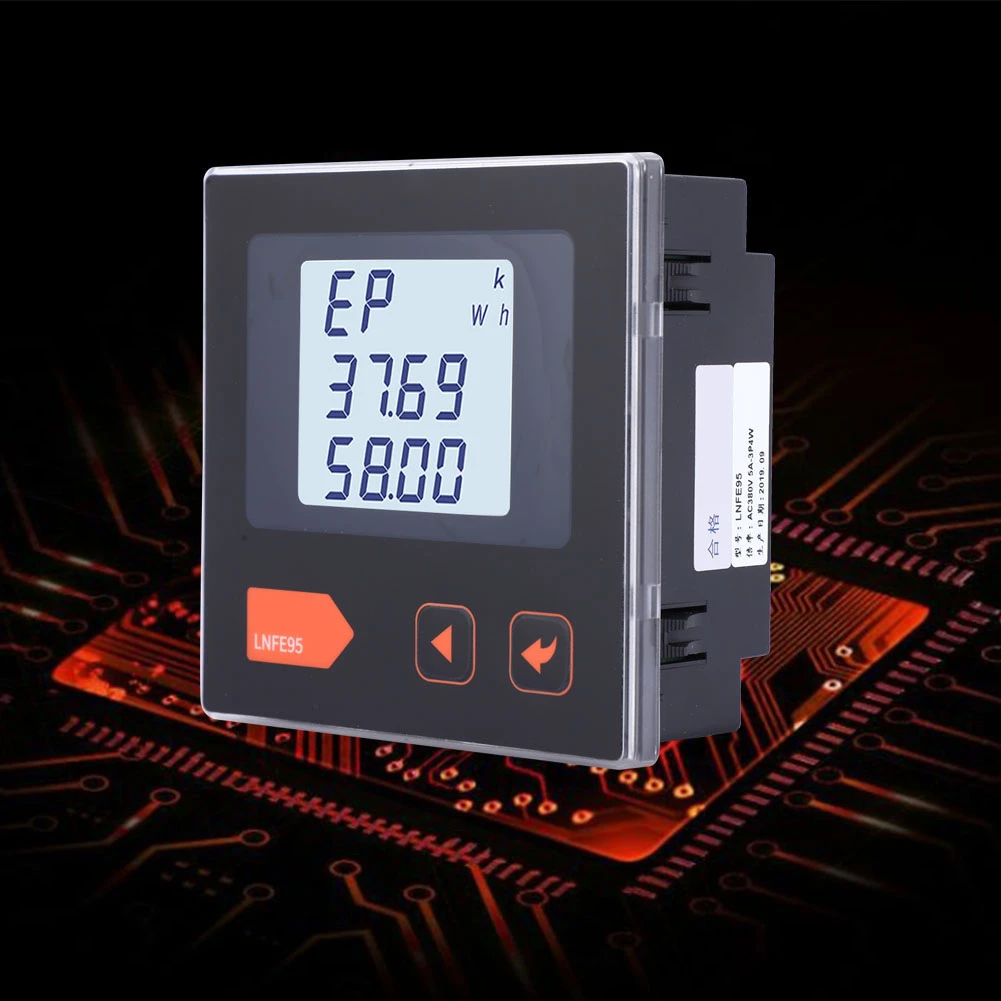

genericLNFE95 Multi-Functional Intelligent Digital Display Power Meter Measuring Equipment With Harmonic Measurement
About this item
This multi-functional intelligent power meter can be used to measure the full power parameters and two-way power, with a wide range of applications.

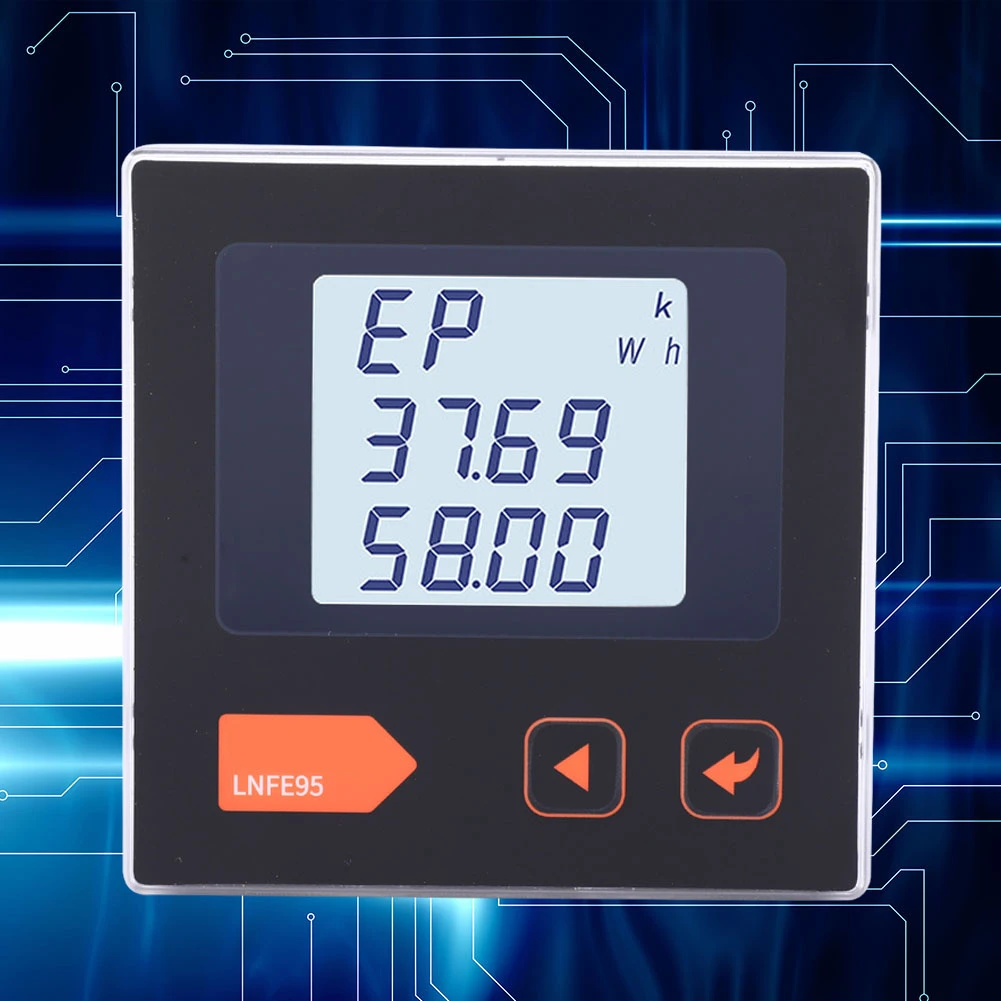

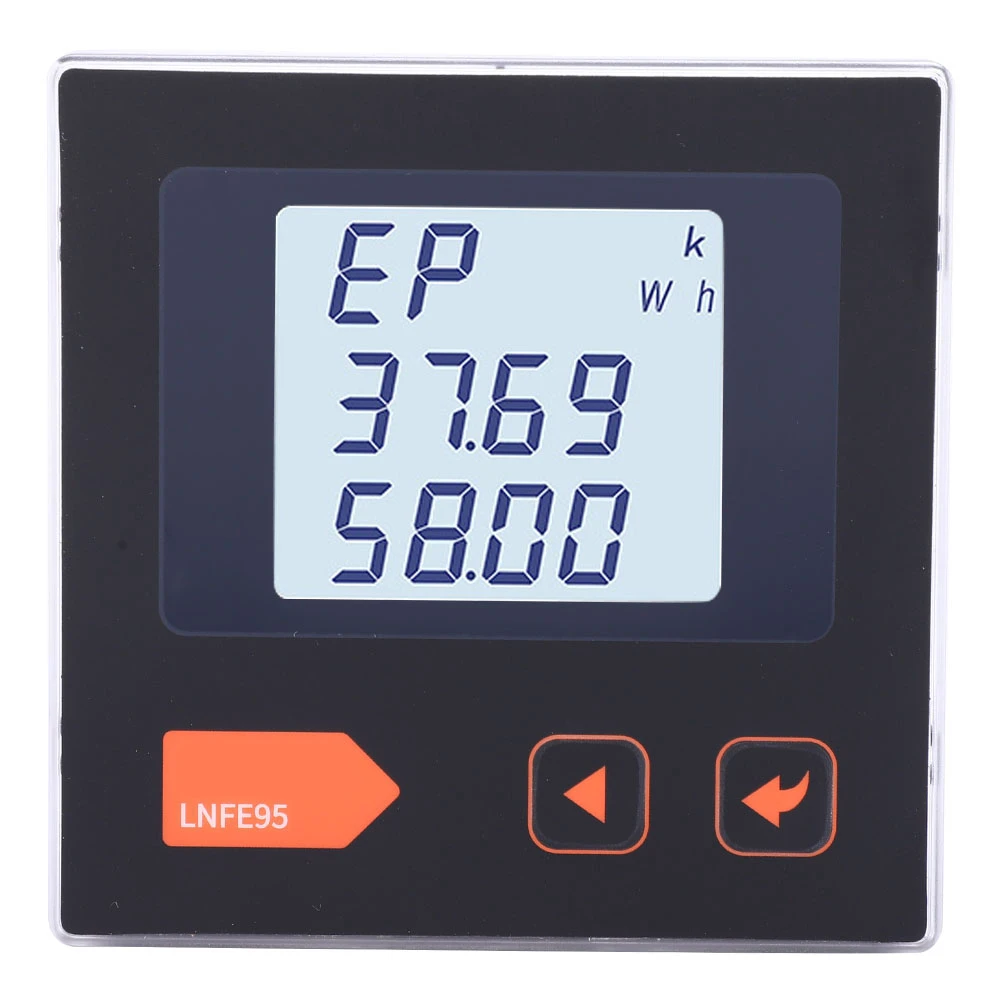

Equipped with LCD data display, the measurement results can be displayed on the screen intuitively, which is convenient for operation.
Built in high-performance CPU, support real-time monitoring, accurate measurement results, quick response.
Adopting ultra-thin design, small in size, light in weight, compact structure, convenient and quick installation.
This series of intelligent power meters have the functions of full electric parameter measurement, two-way electric energy measurement, four quadrant reactive electric energy measurement and harmonic analysis.
It can be connected to power monitoring system, energy management system and realize remote data monitoring.
Unit size:
1 piece
Number of packs in one carton:
1
Min. Order Quantity:
1 piece
Stock location:
الصين
Estimated Lead Time (business days)
7 Days
International delivery:
Available shipping options, costs and estimated shipping times will be shown during checkout.
Carton dimensions (LWH):
10 cm x 10 cm x 5 cm
Carton weight:
265 g
Quantity (piece)
Minimum order quantity is 1 piece
Min. Order Quantity:1 piece
Shipping & Returns
Overview
Product description
Item Type: Power Meter
Material: ABS
Model: LNFE95
Working Power Supply (Auxiliary Power Supply) AC/DC (80-270) V
Power Consumption ≤5VA
Withstand Voltage ≥2KV
Voltage Input
Range 3X230/400V
Resolution 0.1V
Impedance ≥1.7MΩ/Phase
Power Consumption ≤0.1VA/Phase
Overload Continuous: 1.2Vn, Instantaneous: 2Vn/1min
Frequency 45-65HZ
Current Input
Range 3X5A/1A
Resolution 1mA
Impedance ≤20mΩ
Power Consumption ≤0.2VA/Phase
Overload Continuous: 1.2ln, Instantaneous: 10ln/5s
Power Pulse Output
Pulse Width 80ms 20%
Port Maximum Voltage 35V
Port Maximum Current 100mA
Pulse Frequency ≤10HZ
Output Object Positive Active Energy, Positive Reactive Energy
Communication Interface
Physical Interface RS-485
Communication Rate Up To 9600bPS
Letter of Agreement For Modbus-RTU
Isolation Voltage 200VAC (1min)
Working Environment
Operating Temperature -10°C-55°C
Storage Temperature -25°C-70°C
Relative Humidity ≤93%RH
Working Altitude ≤2500m
Antifouling Level Non-Corrosive Gas
Protection Level Display Frame IP54, Instrument Housing IP20
Insulation Signal, Power Supply, Output Terminal to Shell Resistance >100MΩ
Withstand Voltage Power, Input, Output ≥ 2KV
Display LCD
Weight 292g / 10.3oz
Product Size 9.5x9.5x4.1cm / 3.7x3.7x1.6in
