Highlights

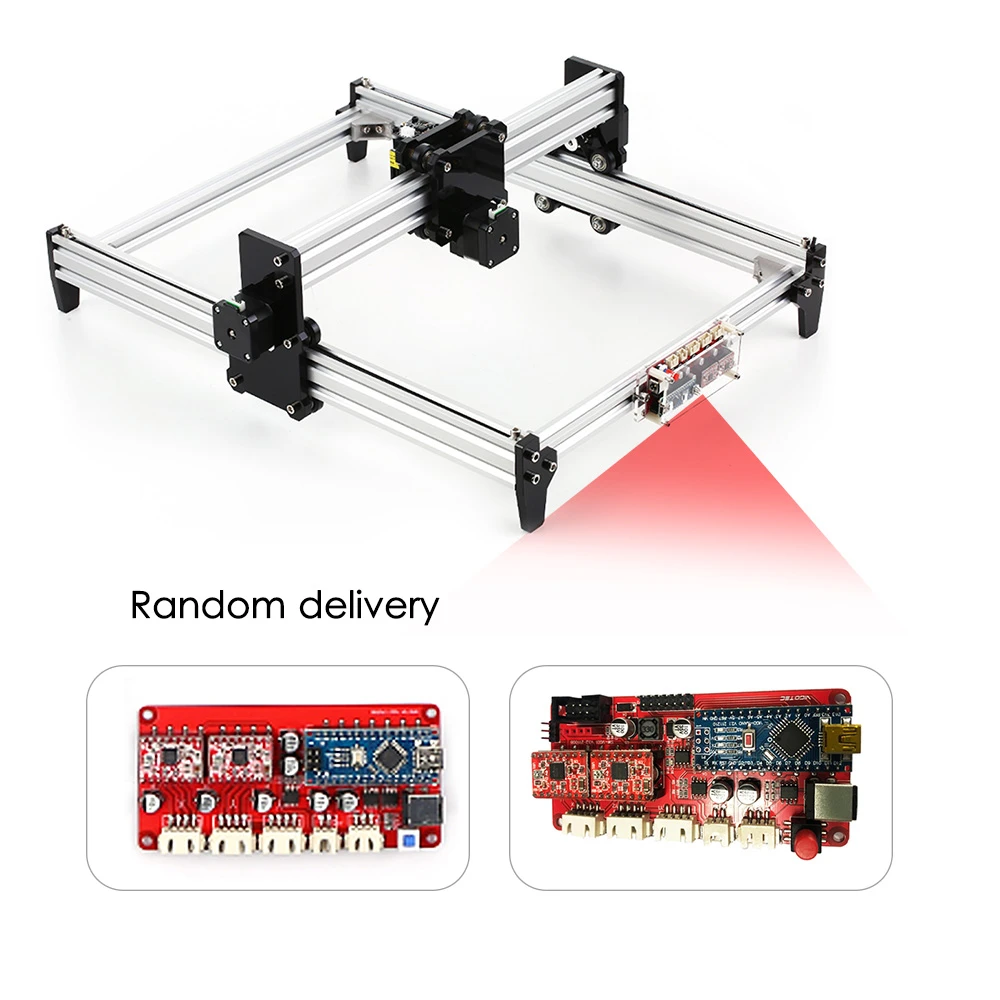

  • Desktop DIY laser engraving machine for laser carving and more cost-effective than normal engraving machine.
  • Support Win7 and above software system, support Chinese and English bilingual operation interface.
  • 526mm*485mm*193mm(L*W*H), effective working size: 395mm x 285mm (A3), the actual working size is slightly smaller than A3 about 2cm.
  • Y axis double motor, three stepper motor providing faster moving speed.
  • No laser or 3 kinds of l500mw / 2500mw / 5500mw laser module for your option with heatsink fan, high laser engraving power and long working time.

Key Attributes

SKU IDSHTDE5242EUPY
Dimensions (Length x Width x Height)50.5cm x 39.8cm x 10.5cm
weight4220.79g
Stock Location
Country of Origin
BrandMorelian

Shipment Information

Weight per item

4220.79 g

Dimensions per item (LWH)

50.5 x 39.8 x 10.5 cm

Carton weight

4220.79 g

Carton dimensions (LWH)

50.5 x 39.8 x 10.5 cm

Pieces per carton

1

Stock location

/> Specifications: Material: Aluminum Alloy ' Acrylic  Main Color: Silver Power Supply: AC 100-240V Output 12V 5A Plug Type: US / EU / UK (Optional) Laser Power: No Laser / 500mw / 2500mw / 5500mw (Optional) Laser Wavelength: 405nm (500mw), 445nm (2500mw/5500mw)  Supported OS: Win 7 and above Controller Board: VigoTec Communication Port: Micro USB Stepper Motor: 33mm thick 42SHD0001, Step Distance Angle 1.8° Supported Software: Engraving machine software uses VigoEngraver, Support GRBL, benbox, elekscam, if you have firmware you can use. Supported Formats: jpg / bmp / DXF / G-code Image Size: No Limitation Engrave Mode: Image Engraving, Text Carving, Scanning Carving, Contour Carving, Pixel Carving, Grayscale, Black White Laser Quick Replace: Support Continuous Work Time: Sustainable Working (With Heat Dissipation Fan) Working Voltage: DC 12V Working Current: DC 5A Engraving Accuracy: 0.05mm Engraving Area: 395 * 285mm / 15.6 * 11.2in (A3 Paper Size) (The actual working size is about 2cm smaller than A3) Laser Focus Distance: about 5-8cm Can Not Carve Objects: All metals, glass, stone, ceramics, jewelry, silver, reflective material, translucent & transparent material. Can Carve Objects: All wood, bamboo, paper, plastics, leather, rubber, horn, sponge sheet, etc. Can Cut Objects: Paper-thin, light wood, sponge paper, felt, fabric, sticker. Item Size: 526 * 485 * 193mm / 20.7 * 19.1 * 7.6in Item Weight: 4.15kg / 9.15lb Package Size: 50.5 * 40.5 * 10.5cm / 19.9 * 15.9 * 4.1in Package Weight: 4345g / 9.58lb Package List: (DIY Kit, Need To Assemble By Yourself.) 1 * VG-L3A Laser Engraving Machine Kits(laser head not include) 1 * Control Board Package 1 * Protective Glasses 1 * Power Adapter 1 * Hardware Installation Manual

Laser Engraving Machine - Desktop CNC Carver with Protective Glasses

AED 532.8
AED266.40/piece
-50%
Excl. Import Charges
Buy more save more
Seller's return policy Learn more
4 interest-free installments starting with AED 66.60
