Highlights

  • It is suitable for micro FPV racing drone quadcopter
  • Mounting bracket hole position: standard M2 screw
  • 700TVL HD camera with 120° wide view provides you clear image
  • Full formal video formal: NTSC/PAL
  • The alloy shell of transmitter is helpful for heat dissipation and beautiful appearance

Key Attributes

SKU IDTRE1MX02367D214-14683-27453
Dimensions (Length x Width x Height)7cm x 5cm x 3cm
weight12g
Stock LocationChina
Country of OriginChina
Brandgeneric

Shipment Information

Weight per item

12 g

Dimensions per item (LWH)

7 x 5 x 3 cm

Carton weight

26 g

Carton dimensions (LWH)

7 x 5 x 3 cm

Pieces per carton

1

Stock location

China

Features:
It is suitable for micro FPV racing drone quadcopter.
Mounting bracket hole position: standard M2 screw.
700TVL HD camera with 120° wide view provides you clear image.
Full formal video formal: NTSC/PAL.
The alloy shell of transmitter is helpful for heat dissipation and beautiful appearance.

Specification:
Material: PBC
Color: Shown As Pictures
Total Weight: 25g
Type: RC Type & Accessory

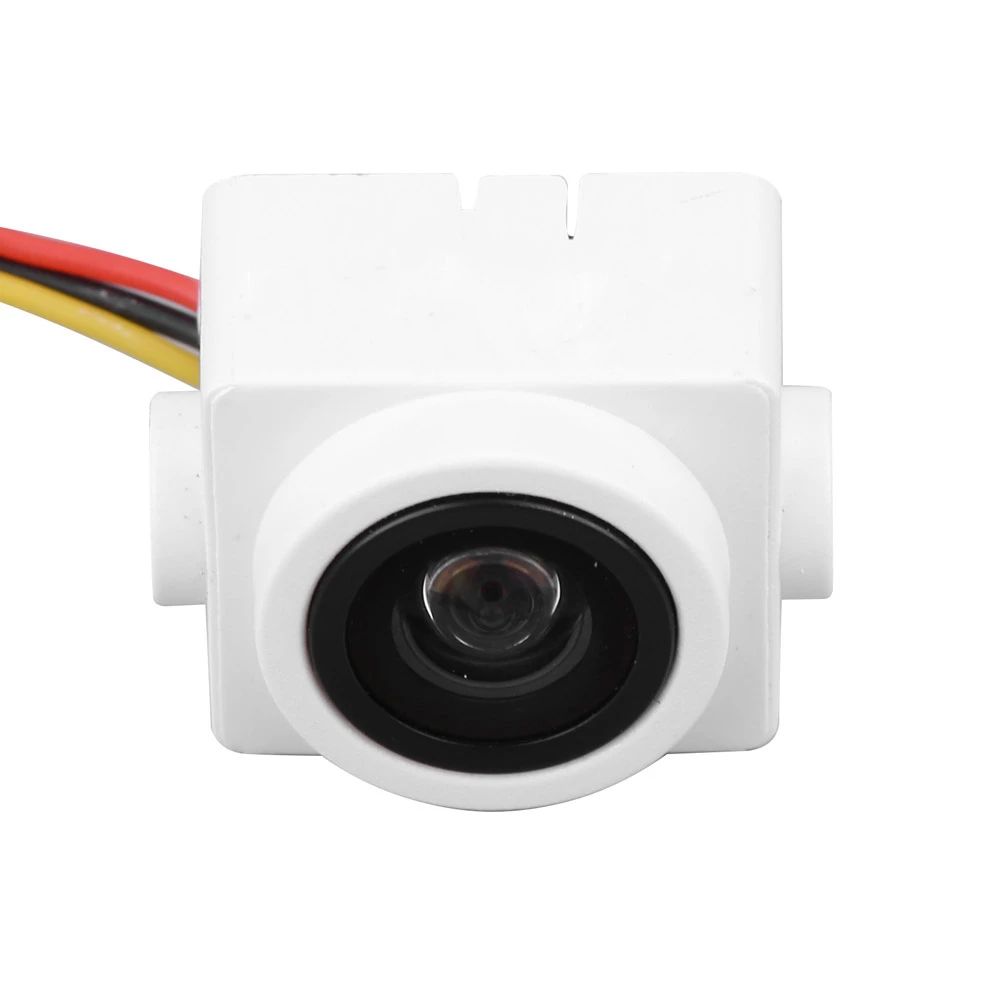

Camera Specification:
Model Number: TWC25
Sensor: 1/4 CMOS
Power Supply: 3.7-5V
Operating Temperature: -10° to 60°
Current Consumption: 80mA
Resolution: 700TVL
Angle: H120°, V100°
Video Format: NTSC/PAL
Size: Approx. 12 * 14mm / 0.47 * 0.55inch
Plastic Shell Size: Approx. 19 * 14 * 8.87mm / 0.75 * 0.55 * 0.35inch
Transmitter Specification:
Support Smart Audio V1 Protocol
Transmitter Operating Voltage: DC 7V - 26V
Output Voltage: 4.2V
High Power: 200mW
Low Power: 25mW
Transmitting Frequency: 5.6 - 5.9Ghz
Working Temperature: -10 to 85℃
Video Bandwidth: 8M
Size: Approx. 21.58 * 25.5 * 4mm / 0.85 * 1 * 0.16inch

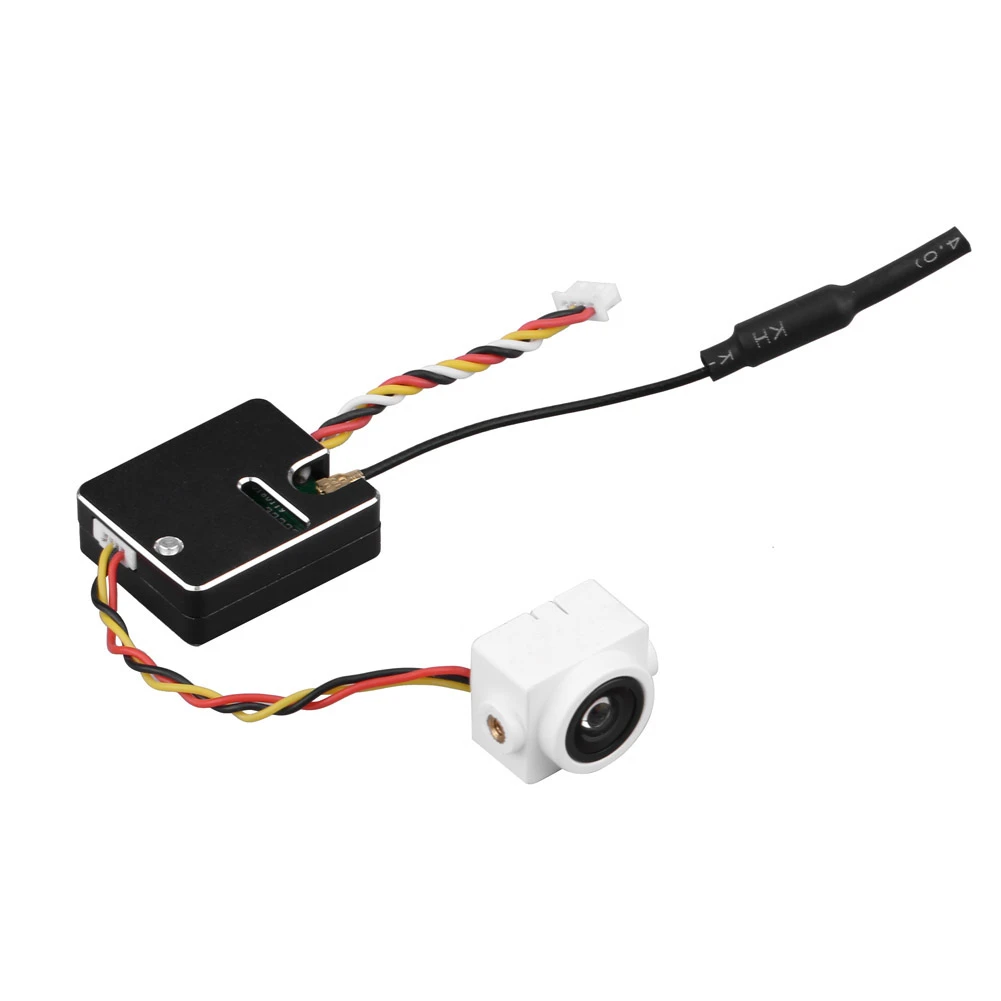

Package Includes:
1 x TWC25 700TVL Camera with Shell
1 x Camera Cap
1 x 25mw/200mw Transmitter

700TVL NTSC/PAL Switch FPV Camera W/ Shell & 25mw/200mw Transmitter Support SmartAudio Protocol
