Name: 2300KV Brushless Motor 3650 Waterproof Motor with 60A Brushless ESC 5.8V 3A BEC Heatsink Programming Card for 1/8 1/10 RC Car 2300kv
Brand: morelian
SKU: SHTDRM14093-2300PY
Price: 274.89 AED
Availability: InStock

Highlights

The set includes a 2300KV brushless motor, a 60A ESC, programming card and heatsink, which is perfectly fit for the 1/8 1/10 RC car and is designed to provide both quality and performance at an affordable price.
The ESC features enhanced throttle response, excellent acceleration, strong breaks and throttle linearity. Supports program card to make adjustments.
High purity copper windings maximize efficiency, a precision-balanced rotor, smoothness for best reliability and maximum RPM.
Efficient and high-speed ball bearings, precision-engineered for maximum energy conversion.
Multiple protection features: Low voltage cut-off protection for lithium battery, over-heat protection, Throttle signal loss protection, motor blocked protection.

Key Attributes

SKU ID	SHTDRM14093-2300PY
Dimensions (Length x Width x Height)	12cm x 8cm x 4cm
weight	76.8g
Gender	N/A
Stock Location	China
Country of Origin	China
Brand	Morelian

Shipment Information

Weight per item	76.8 g
Dimensions per item (LWH)	12 x 8 x 4 cm
Carton weight	76.8 g
Carton dimensions (LWH)	12 x 8 x 4 cm
Pieces per carton	1
Stock location	China

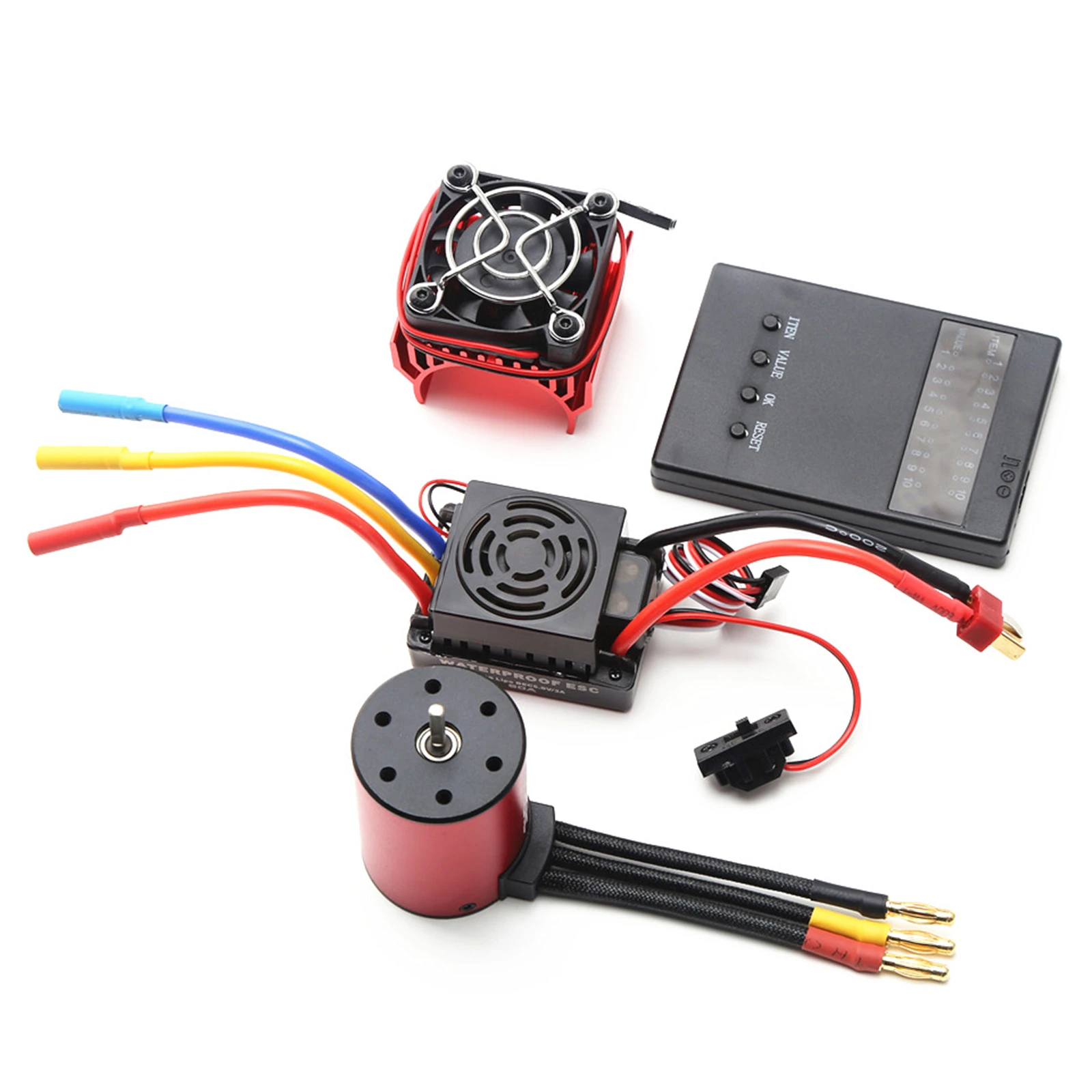

Specifications: Name: 3650 RC Brushless Motor and Brushless 60A ESC 3650 RC Brushless Motor: KV(RPM/Volt): 2300KV/3100KV/3900KV4300KV Optional Watt: 850 Max RPM: 60000 Max Voltage: <8.4V Max Amps: 100A Rotor Poles: 4 Diameter: 36mm Length: 50mm Shaft Length: 15mm Shaft Diameter: 3.175mm Connector: 4.0mm Gold Weight: 165g Brushless 60A ESC: BEC: 5.8V/3A Continue Current: 60A Burst Current: 320A Battery: 2-3S Li-Po / 4-9S Ni-Mh Ni-Cd Power Supply Plugs: T Plug Male Motor Plugs: 4mm Banana Plug Female Size: 50 * 35 * 34mm(without cables) Weight: 82g (with Cables) Programming Card: Low Voltage Cut Off: 3.1V/Cell 2.8V/Cell 3.3V/Cell No Cut-off Start Mode: Medium, Soft, Strong Max Brake Force: 25%, 50%, 75%, 100% Max Reverse Force: 25%, 50%, 75%, 100% Neutral Range: 6%, 9%, 12%, Work State Package Information: Package Size: 12*8*4.5cm Package Weight: 339g Plastic Package Packing List: 1* 2300KV Brushless Motor 1* 60A ESC 1* Heatsink 1* Programming Card

Overview

Product Description

2300KV Brushless Motor 3650 Waterproof Motor with 60A Brushless ESC 5.8V 3A BEC Heatsink Programming Card for 1/8 1/10 RC Car 2300kv
